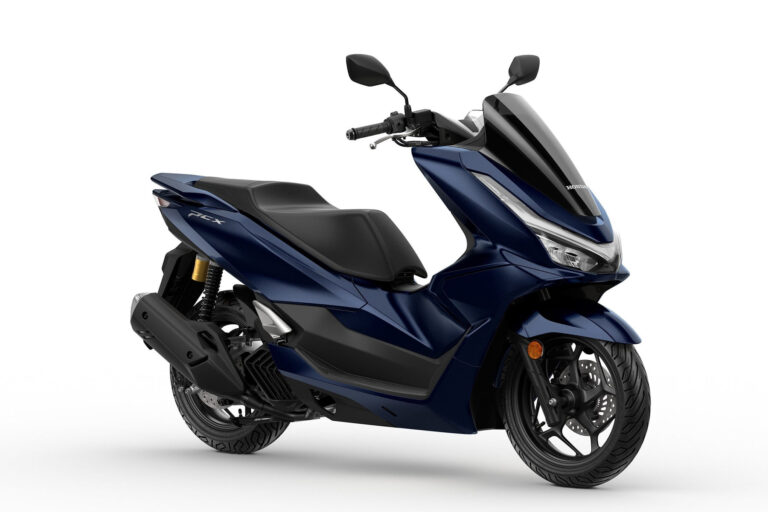

Honda PCX PEARL DARK ASH BLUE

Descrição

Engine

Bore × Stroke (mm) 53.5 x 55.5mm

Carburation PGM-FI electronic fuel injection

Compression Ratio 11.5:1

Engine Displacement (cc) 125

Engine Type Single-cylinder, water cooled, eSP+ SOHC 4-stroke

Max. Power Output 9.2kW / 8,750rpm

Max. Torque 11.7Nm / 6,500rpm

Starter Electric

Throttle Bore

Oil Capacity (Litres) 0.9 L



Wheels

ABS System

Brakes Front 220mm hydraulic disc with combined 2 piston caliper

Brakes Rear 1 piston caliper. Signle 220mm Disc

Suspension Front 31mm telescopic fork, 89mm axle travel

Suspension Rear Twin suspension aluminium swingarm, 95mm axle travel

Tyres Front

Tyres Rear

Tyre Size Front 110/70-14M/C (48P)

Tyre Size Rear 130/70-13M/C (61P)

Wheels Front 14M/C x MT2.75, 5-spoke cast aluminium

Wheels Rear 14M/C x MT3.50, 5-spoke cast aluminium



Dimensions and Weights

Battery Capacity (VAh) 12V/7AH (10H)

Caster Angle 26.5°

Dimensions (L×W×H) (mm) 1,935 x 740 x 1,125mm

Frame type Tubular steel duplex

Fuel Tank Capacity (Litres) 8.1 L

Fuel Consumption 47.6 km/L (without Idling Stop)

Ground Clearance (mm) 135mm

Kerb Weight (kg) 130kg

Seat Height (mm) 764mm

Trail (mm) 80mm

Wheelbase (mm) 1,315mm



Transmission

Clutch Automatic, centrifugal, dry type

Final Drive V-belt

Transmission Type CVT



Instruments and Electrics

Headlights LED

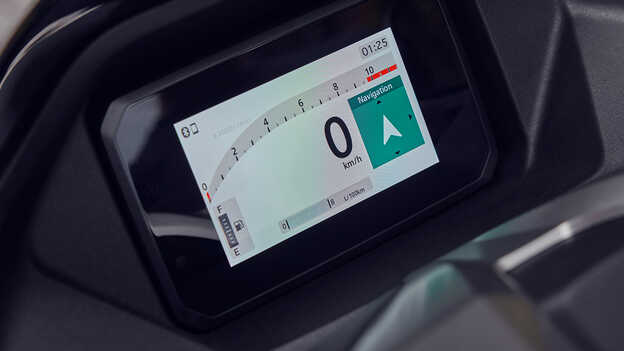

Instruments LCD

Tail Light LED

USB Socket USB C

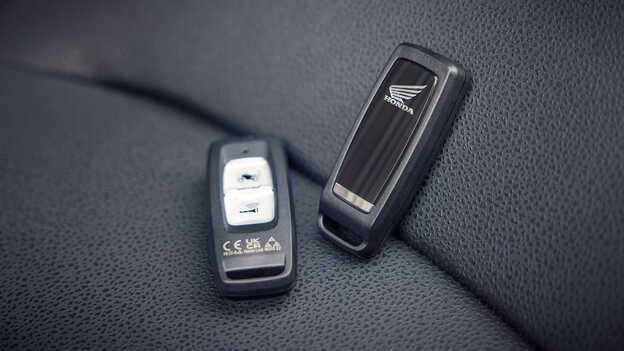

Security Immobiliser
